Automatic Gate Openers, Garage Door Openers and French Window Shuttered Doors
CHOOSE PRODUCT VARIANT
€ 303.00EUR

Preise zzgl.22% IVA und Versandkosten Die Versandkosten hängen von der Lieferadresse und Artikel Gewicht Kurzvorschau Versandkosten: Deutschland / Österreich = ca (€12 - €24)

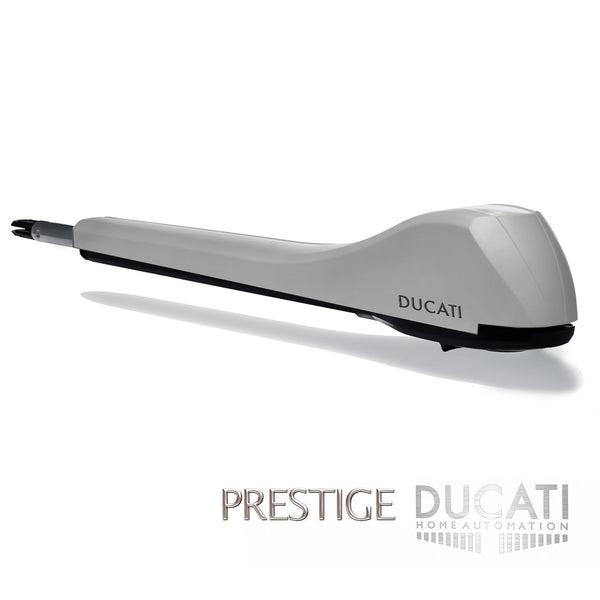

EVE 900 T

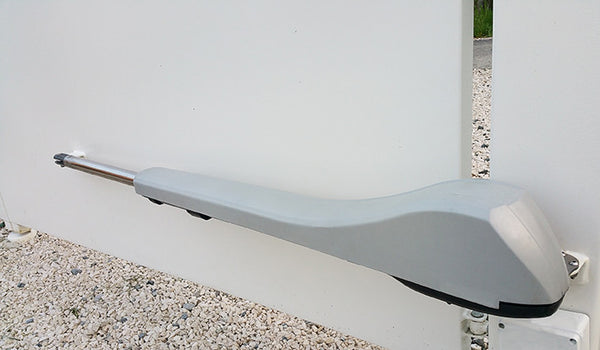

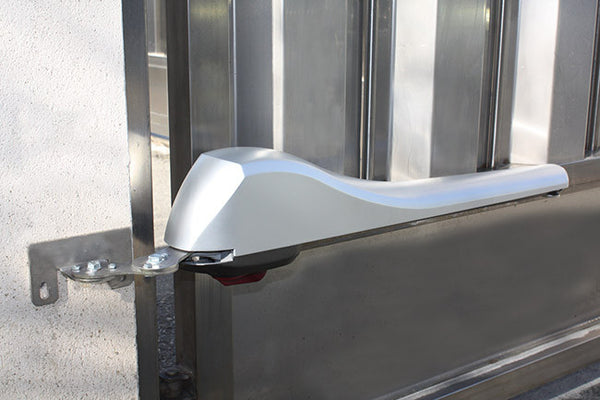

Telescopic actuator with  500mm stroke is  ideal for gates up to 5m /16 ft length each leaf.

The new state of the art in swing gate automation technology. Years of reliable performance. Unparalleled design and safety with EVE telescopic actuator made of  robust aluminium shell.

The perfect heavy duty gate opener comes with integrated mechanical limits.

Ideal for heavy continuous intensive use in any climate, for residential, commercial or industrial gates.

Features a Heavy-Duty Cast Aluminum Housing DC Motor powerful enough
to perform in the most demanding applications.

Innovative motion transmission system eliminates the traditional lower slot. Unique anti- hand-crushing system

  • 12V or 24V version available (24V version is recommended for heavy gates )
  • Integrated mechanical limit to set the gate open & closed position avoiding mechanical stops to be fixed on the floor.
  • Telescopic 500 mm stroke  actuator is ideal to be installed on medium / big gates or large pillars
  • This electromechanical irreversible actuator comes with 1m outdoor use cable H05RN-F 2 x 1mmq; set of fixing brackets and unlocking key for emergency manual release.

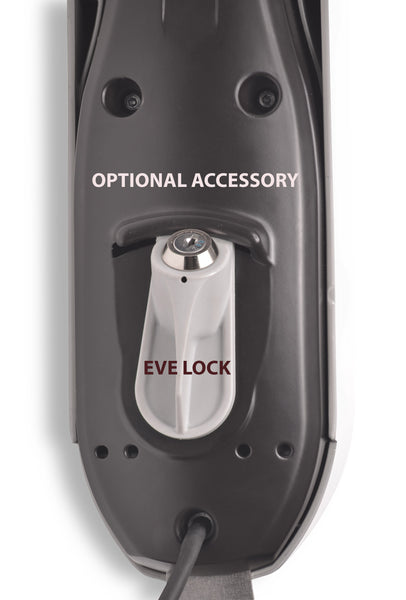

  • Compatible with optional accessory EVE-LOCK to protect by key the standard manual unlocking system
  • Massive motor-gear unit for reliable power transmission
  • Actuator can be installed either on the right or on the left of the gate and can also open towards outside the property
  • Ideal for intensive use in any climate
  • The gate keeps automatically locked.The self-locking properties of the spindle increase the protection against a dangerous and un-autorised “pressing” of the gate and the otherwise necessary elecktrolocks for the final positions can be omitted but recommended for wing measuring over 2,8m
  • TELESCOPIC ELECROMECHANICAL ACTUATOR EVE 900 T

    Actuator made of durable materials. Each component is made in the ideal material to ensure quality , reliability in all weather conditions, long lasting performances and safety: our DC actuators ensures double electrical insulation

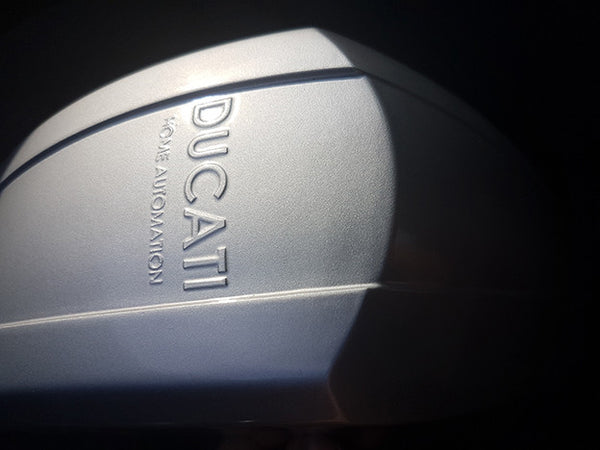

    • Strong die casting aluminium metal shell
    • Stainless steel pipe AISI 304
    • PR80 steel 3 principles 20mm main screw
    • Sinterized gears
    • C40 steel worm screw machined and lapped by rolling machine
    • Rotor made with double insulated copper Class H 200°C
    • Extruded painted aluminium parts

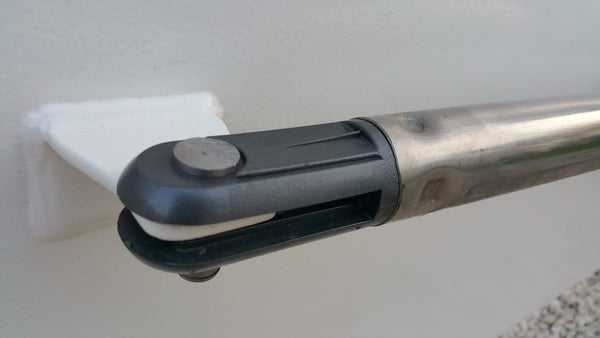

    • High strenght and double motor insulation: Nylon-glass integrated back fork guarantees double electrical insulation. Durable, withstands all weather conditions
    • Hostaform® three principles nut screw for a long lasting high-performance

Betriebsspannung
(version 24V)
12V(24V)

Leistung
(version 24V)
60W/
120W
max. Drehmoment (version 24V) 1200N/
2400N
Nutzhub 500mm
Hubgeschwindigkeit (cm/sek) 1,5 cm/sec
Telescopisch
Dauereinsatz intensive Nutzung
keine Grenzen
Temperaturbereich -20°C/+50°C
max. Flügellänge (kleiner natürlich immer möglich !) 5m Jeder
flügel
max. Flügelgewicht (weniger natürlich immer möglich !) 500kg Jeder
flügel
Maximaler Öffnungswinkel 137°
Automatische Flügel Blockierung
selbsthe-
mmender
Spindel-
Flügel-
torantrieb

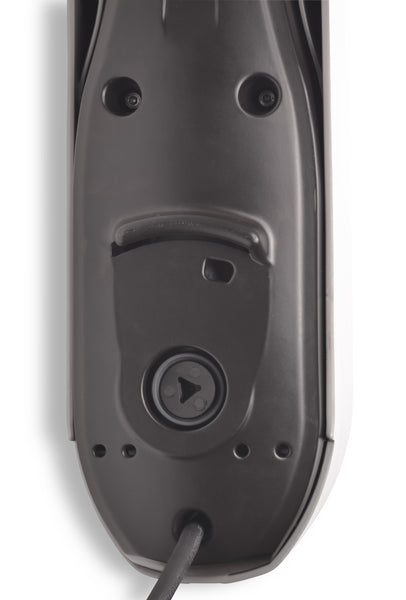

Manuelle Notfall Entriegelung √ Durch dreieckigen Schlüssel
Kompatibel mit Tor nach außen

CONTROL BOARD COMPATIBILITY

12V version actuator is compatible to all DUCATI's 12V swing gate opener control boxes  (electronic boards:CTH42; CTH44; CTH48)

24V version actuator is compatible to all DUCATI's 24V swing gate opener control boxes  ( Kontol 9048/24 with electronic board CTH48/24)
