SOLAR 2012

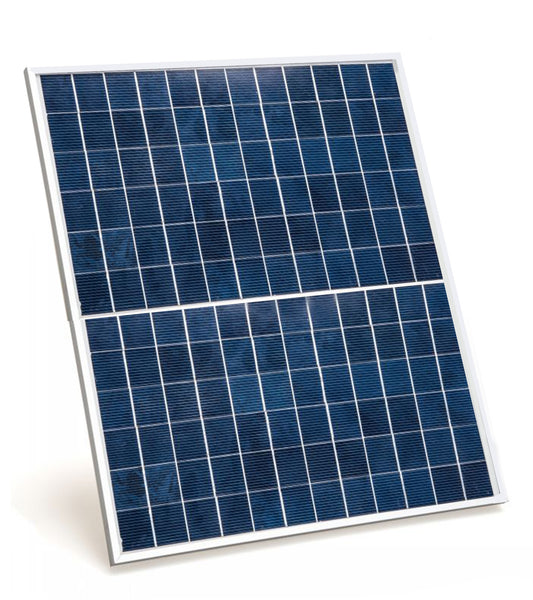

20W 12V Solar Panel

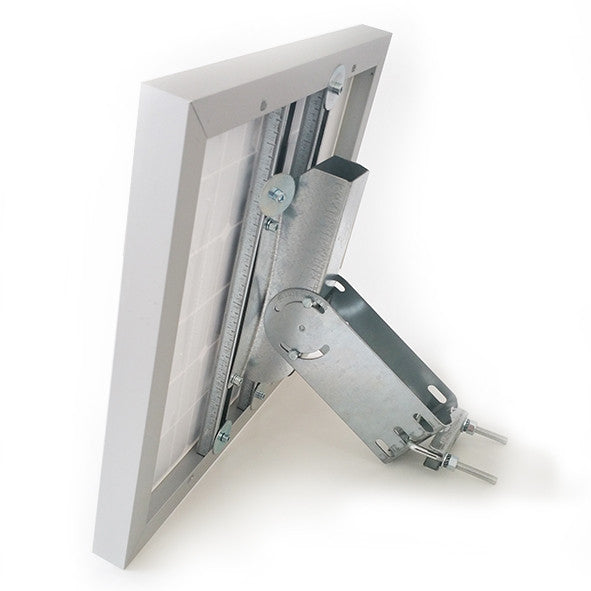

Supplied with robust fixing bracket
photovoltaic module made with polycrystalline silicon cells.
Highly transparent prismatic tempered glass and Tedlar sheet protects the cells, which are encapsulated between two sheets of EVA (Ethylene Vinyl Acetate). A robust anodized aluminum frame 25mm makes the modules extremely resistant.
The production process ensures the cells maximum protection even under the most demanding working conditions and the most difficult environmental conditions.
Maximum power (Pmax) 20 Wp
Short Circuit Current (Isc) 1.34 A
Open Circuit Voltage (Voc) 22.25 V
MPP current (Imax) 1.12 A
MPP voltage (Vmax) 18,00 V
Isolation voltage 600 Vdc (UL)
PHYSICAL CHARACTERISTICS
Dimensions (mm) 510 x 290 x 25
Weight
2.40 Kg + fixing bracket.
CONSTRUCTION FEATURES
Polycrystalline cell type
Number of cells 36
Front (Front) Tempered Glass
Rear (Rear) Tedlar multi-layer
encapsulation EVA
Anodized aluminum frame,
BAT 1212
accessories
- 12V 12A lead-acid sealed battery Extra slim model
- Lead acid Capacity: 12Ah Volts: 12 Dimensions 10cm W x 15cmL x 9 cm H
KONTROL 7857
CONTROL BOX
Beschreibung Motorsteuerung Gehäuse für SOLAR 1 oder 2-flügelig Torantrieb. mit Platine Modell CTH44 , Ringkerntransformator, integrierten Funkempfänger und Antennenkabel LERNEN SIE MEHR über reduzierte Verbrauchstechnologie .. LERNEN SIE MEHR über unsere...
