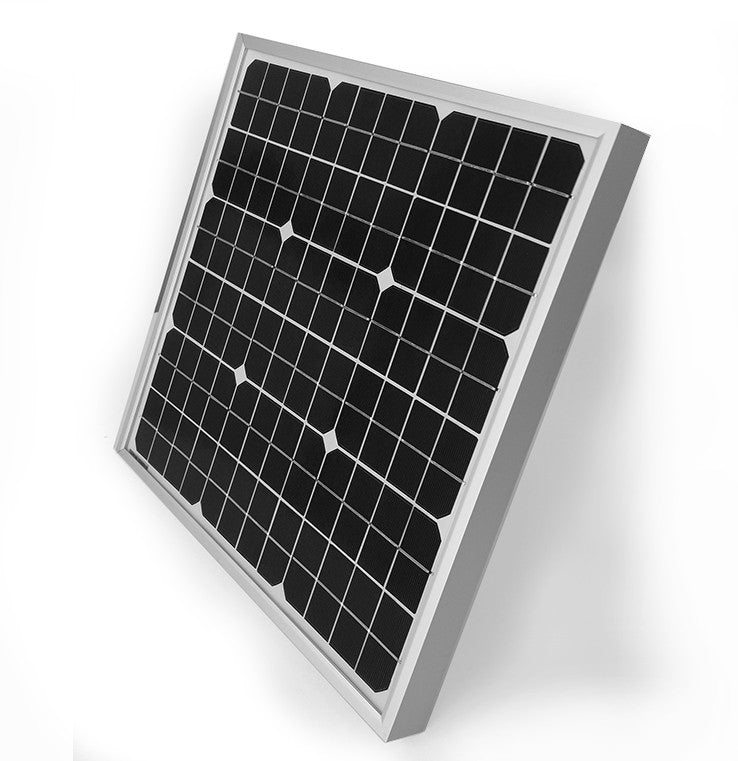

20W 12V Solar Panel

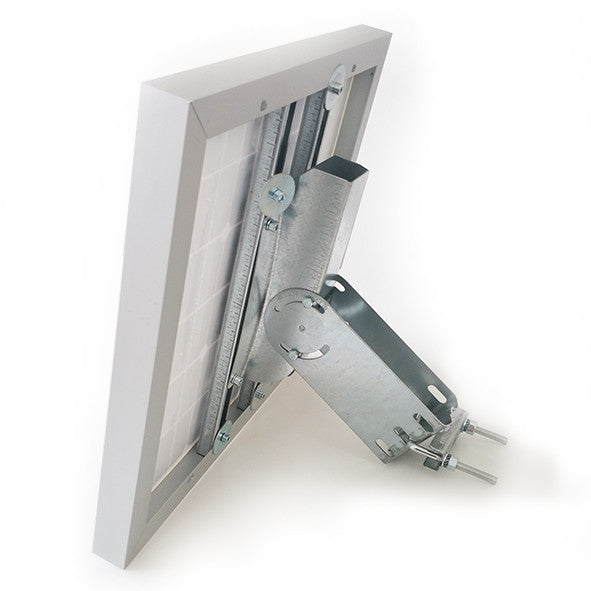

Supplied with robust fixing bracket
photovoltaic module made with monocrystalline silicon cells.
Highly transparent prismatic tempered glass and Tedlar sheet protects the cells, which are encapsulated between two sheets of EVA (Ethylene Vinyl Acetate). A robust anodized aluminum frame 25mm makes the modules extremely resistant.
The production process ensures the cells maximum protection even under the most demanding working conditions and the most difficult environmental conditions.
Maximum power (Pmax) 20Wp
short circuit current (Isc) 0.70 A
Open Circuit Voltage (Voc) 45.40 V
MPP current (Imax) 0.66 A
MPP voltage (Vmax) 38 V
Isolation voltage 600 Volt
NOCT (800W / m2-20 ° C - AM 1,5) 47 ° C
Dimensions (mm) 420 x 420 x 35
Weight 4.8 Kg + bracket
Place of production form Italy
Number of cells 72
Front (Front) Tempered glass 4 mm
Rear (Rear) Tedlar multi-layer
Anodized aluminum frame
Junction Box IP65-2 bypass diodes
- 12V 12A lead-acid sealed battery Extra slim model
- Lead acid Capacity: 12Ah Volts: 12 Dimensions 10cm W x 15cmL x 9 cm H
